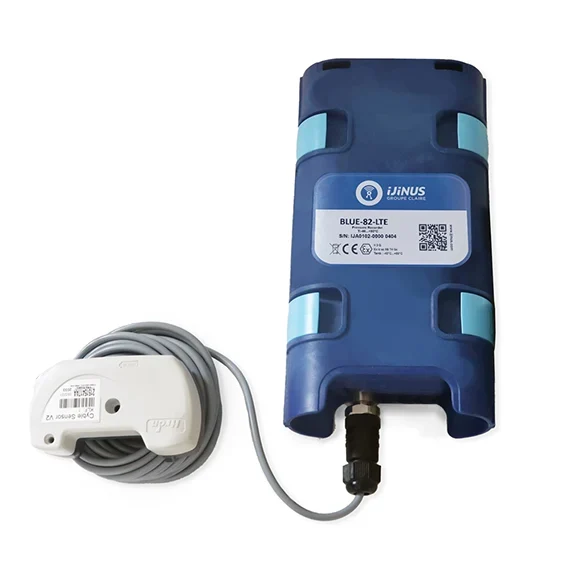

The Ijinus BLUE and Ijinus BLUE‑LP are compact, battery‑powered data loggers designed for water network monitoring and diagnosis. Suitable for permanent or temporary installations, both models provide reliable data acquisition for key network parameters such as flow, pressure, and digital inputs, supporting informed operational and asset management decisions.

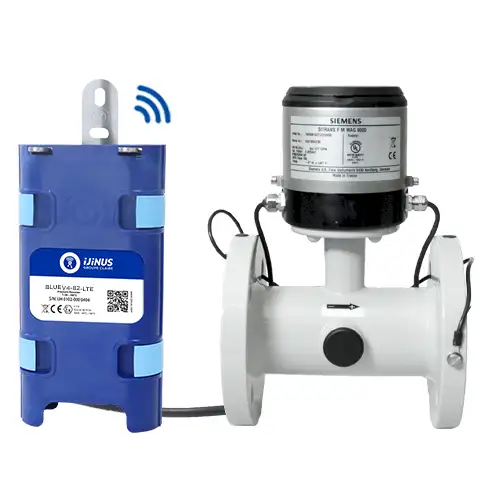

The Ijinus BLUE is a versatile logger capable of recording multiple signal types, including pulse inputs, Modbus flow meters, and 4–20 mA signals. Its modular communication system allows the logger to transmit data to SCADA systems using cellular networks (2G, LTE‑M, NB‑IoT) or LoRaWAN, depending on network availability and project requirements. Communication cards can be replaced on site without removing the logger, simplifying maintenance and reducing downtime.

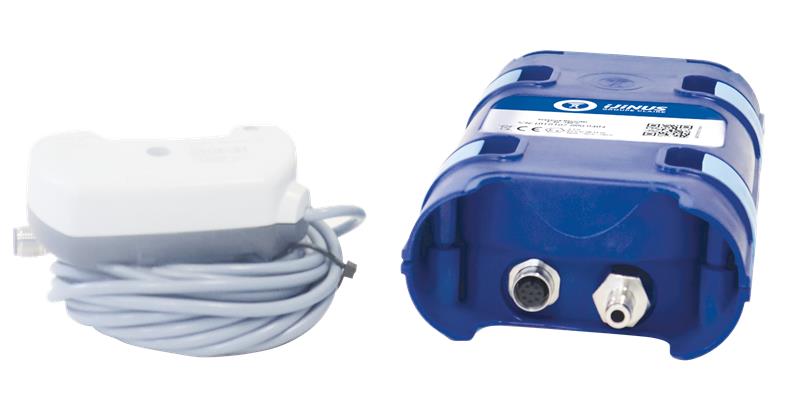

The Ijinus BLUE‑LP includes all the functionality of the BLUE, with the addition of a built‑in pressure sensor. This integrated sensor enables direct pressure monitoring without the need for an external pressure transducer, making the BLUE‑LP particularly suited to applications where pressure performance and transient monitoring are required. This is the key difference between the two models: the BLUE‑LP includes an integrated pressure sensor, while the BLUE does not.

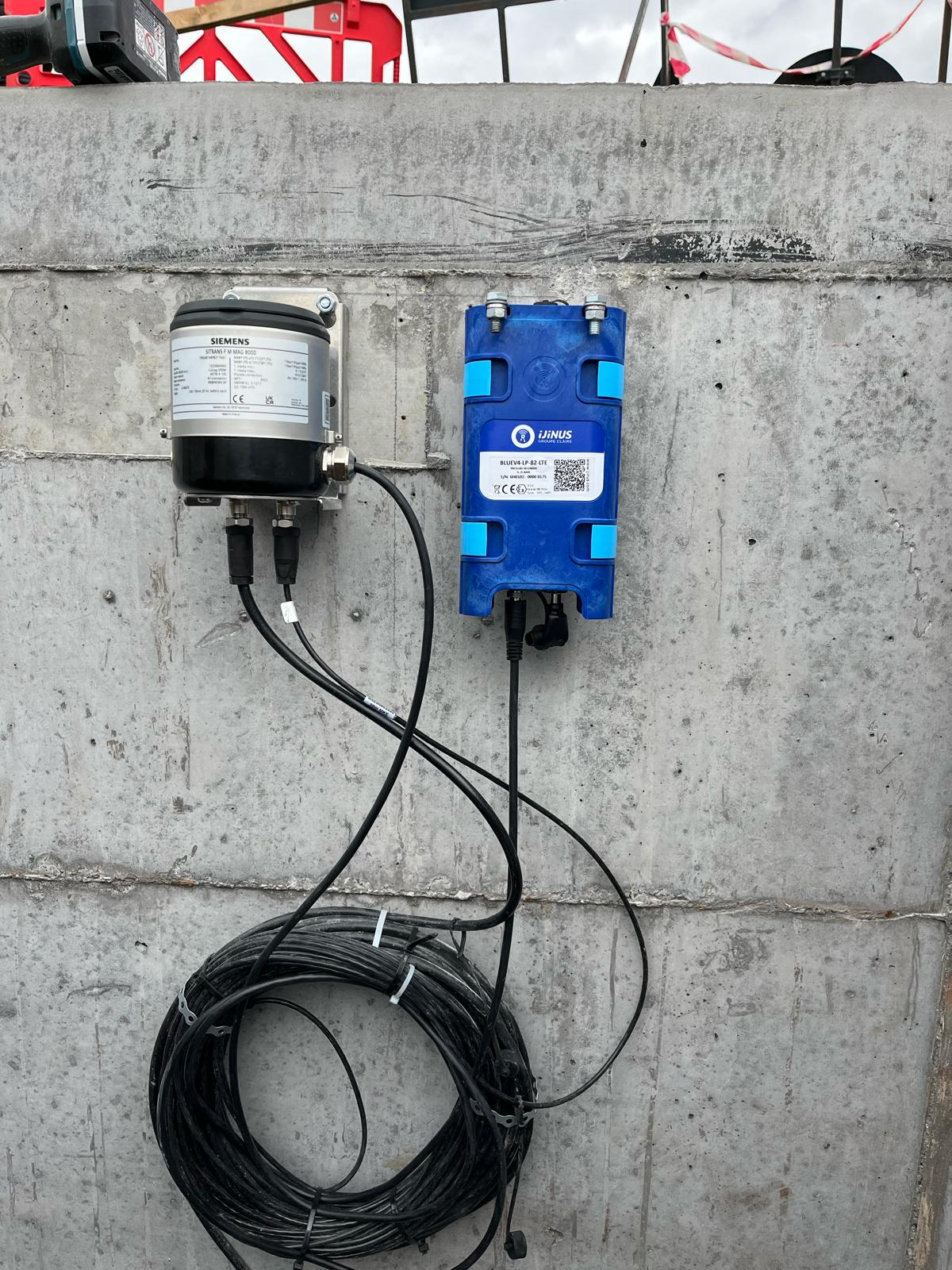

Both loggers are engineered for long‑term deployment in demanding environments, featuring IP68 sealing, high memory capacity, and drinking water certifications, making them suitable for use across potable water networks. Configuration can be carried out wirelessly on site, supporting efficient installation and commissioning.
• Battery‑powered, compact data logger for water networks
• Large internal memory capacity (up to 500,000 measurements)
• Quick and easy installation
• Four digital inputs (pulse or counter up to 100 Hz)
• Two analogue 4–20 mA inputs
• Modbus RS485 interface
• Open collector output
• Interchangeable communication cards
• Communication options: 2G, LTE‑M, NB‑IoT or LoRaWAN
• Secure data transmission using FTPS, HTTPS, COAP or MQTTS
• Wireless on‑site configuration
• IP68 sealing (submersible up to 2 m for 100 days)
• Suitable for potable water applications (NSF/ANSI 61/372 certified)
• Operating temperature range suitable for field deployment
• Built-in pressure sensor in the BLUE-LP

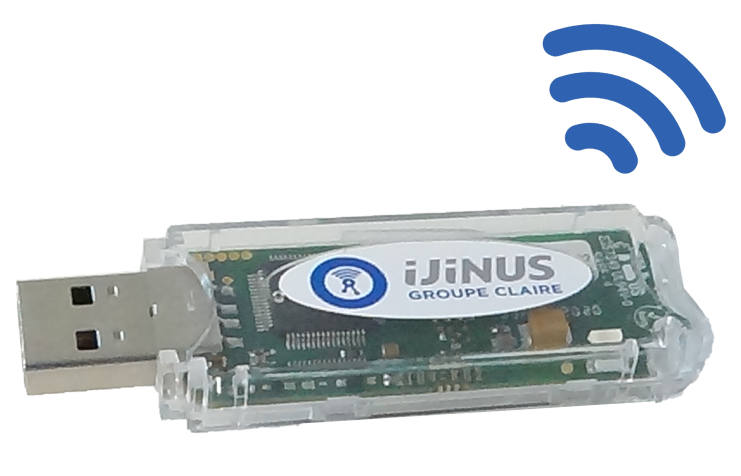

The Ijinus Configuration Kit USB‑HF is a wireless configuration and data access solution designed to be used in conjunction with Ijinus sensors and data loggers.

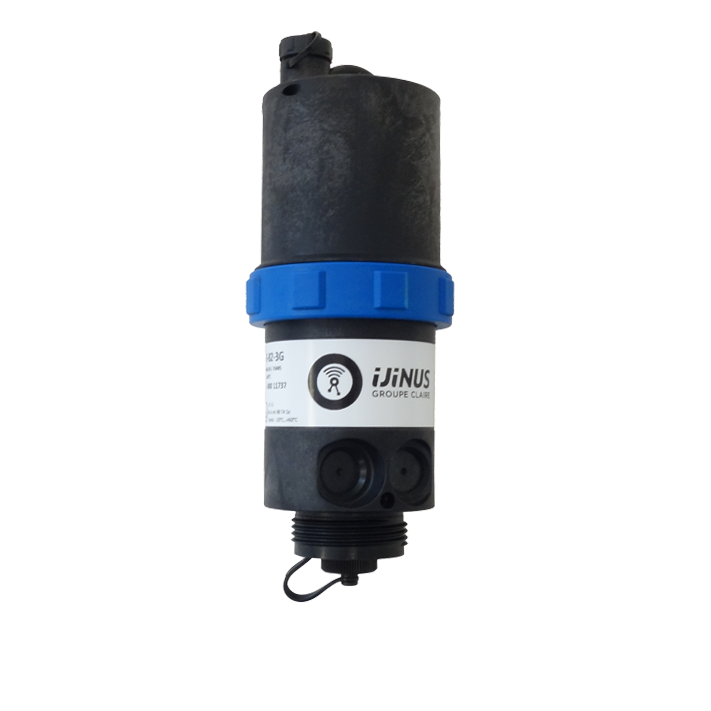

The Ijinus LOG09V4 is a standalone communicating data logger that is compatible with Modbus sensors for advanced applications across water and wastewater networks.

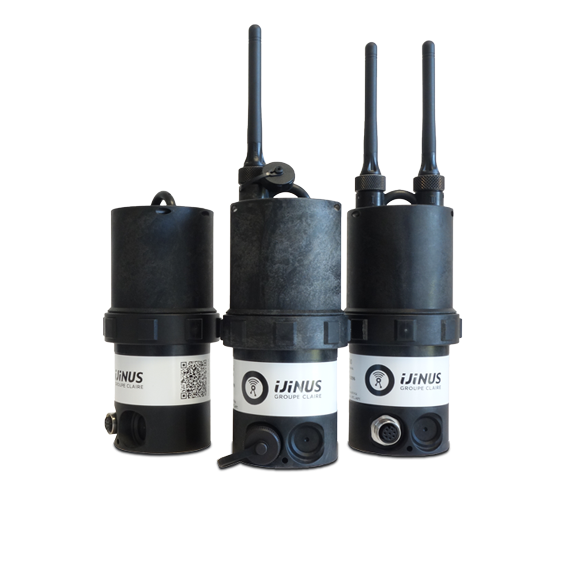

The Ijinus LOG03V4 is a standalone communicating data logger designed for reliable monitoring across drinking water and wastewater networks.

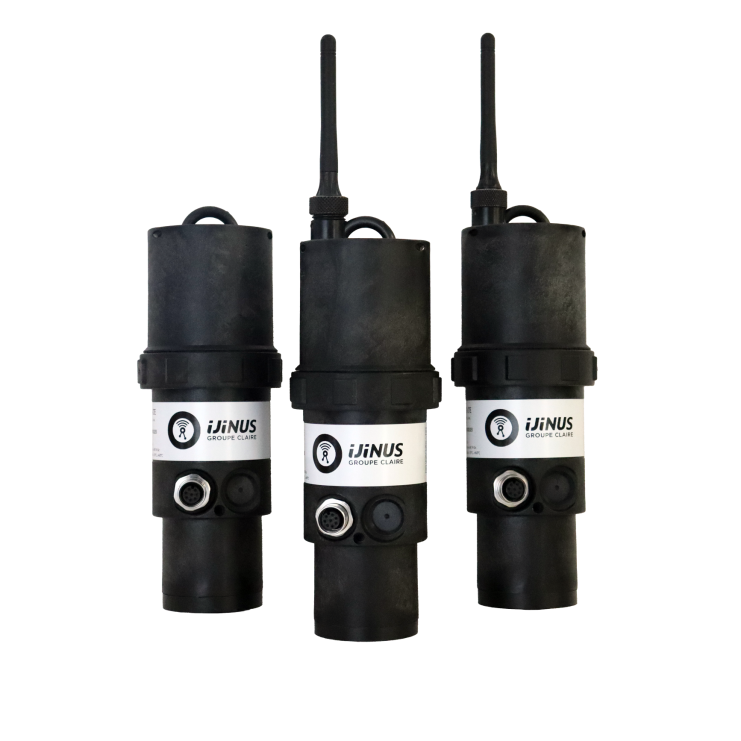

The Ijinus LNR06V4 is a battery‑powered radar water level logger designed for accurate and reliable water level monitoring in outdoor environments.
